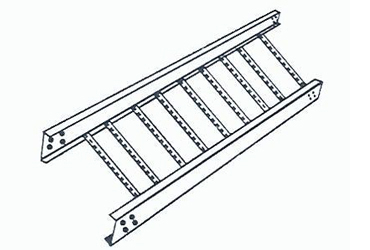

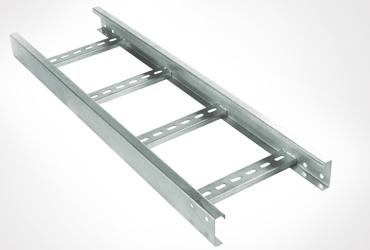

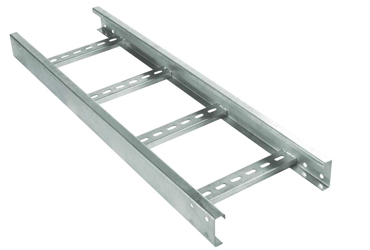

We also manufacture and export Ladder Type Cable Tray. Ladder Type Cable Trays are made of Materials like M.S, S.S, FRP, GI, Aluminum, Hot Dip Galvanized etc. and of Different Types like, Ladder, Perforated, and Punched Fabricated Types & Customized Cable Raceways. It is available in the Size from 100mm to 1200mm which can be used for indoor Applications & Instrumentation Cable Laying. Ladder Type Cable Trays 150mm to 1200mm can be used for Outdoor & Heavily Loaded Areas Following are the Ladder type that we manufacturer:

• Stainless Steel Ladder Type Cable Trays of all Sizes
• Mild Steel Ladder Type Cable Trays of all Types
• Hot Dip Galvanized Ladder Type Cable Trays of all Sizes
• Pre-Galvanized Sheets Ladder Type Cable Trays of all Sizes
• Mild Steel Painted Ladder Type Cable Trays of all Sizes
• Aluminum Ladder Type Cable Trays of all Sizes
• Special Supporting Systems
• All FRP Coated Ladder Type Cable Trays
• Cable Raceways & Trunking
• Wire Type Cable Trays

Sizes Available from:

• Width: from 100mm to 1200mm
• Height-from 25mm to 150mm
• Thk.-from 14 SWG to 18 SWG
• B-from 10mm to 25mm
• RW-from 30mm to 50mm
• RH-from 10mm to 20mm

Ladder Cable trays are used to distribute cables and is designed carefully keeping in mind industrial requirements. These trays are manufactured using top quality material and are available in various sizes. We can offer customized solution for all the products.

Strength: Light, Medium & Heavy Duty These cable trays also available as Welded Type with high grade galvanized sheet and other materials such as painted and powder coated finish on mild steel. The entire manufacturing is undertaken by our trained quality analysts. Ladder cable tray offers high strength as per specification which made them perfect for heavy-duty power distribution in industries, manufactured using pre-galvanized mild steel. These Ladders are available in width ranging from 100mm to 1200 mm and height ranging from 25 mm to 150 mm. Available in standards length of 2.5 Mtr

• Types:  Ladder Type Cable Tray (Welded)
• Strength: Light, Medium & Heavy Duty
• Raw Material: MS, SS, Aluminum.
• Width: 50 mm – 1000 mm
• Height: 25 mm – 100 mm
• Thickness: 1.2 mm –2.0 mm
• Length: 1000 mm – 3000 mm
• Supply Ability: 2000-3500 Meter / Week
• Finish: Self-Finish, Pre-Galvanized, Hot Dip Galvanizing as per IS 2629/4759, BS 729, ASTM 123, Painted (Red oxide, Painted & Powder Coated)
